ROUND DOOR AND SLIDING DOOR

OPTIONS

• Residual moisture control for perfect drying of delicate linen

• Pneumatic steam valve on TTD 28-40-60 (Steam only)

• Fresh air intake flap for fast cool down on TTD 28-40-60

• Adjustable Speed of the drum

• Humidity sensor + variable speed for efficient drying (Highly recommended)

• Heat recirculation for more efficient drying and lower energy consumption (Highly recommended)

• Sprinkler device for fire suppression on steam heated models

• Stainless steel high pressure steam coil (max. 12 bar)

• Infrared sensor

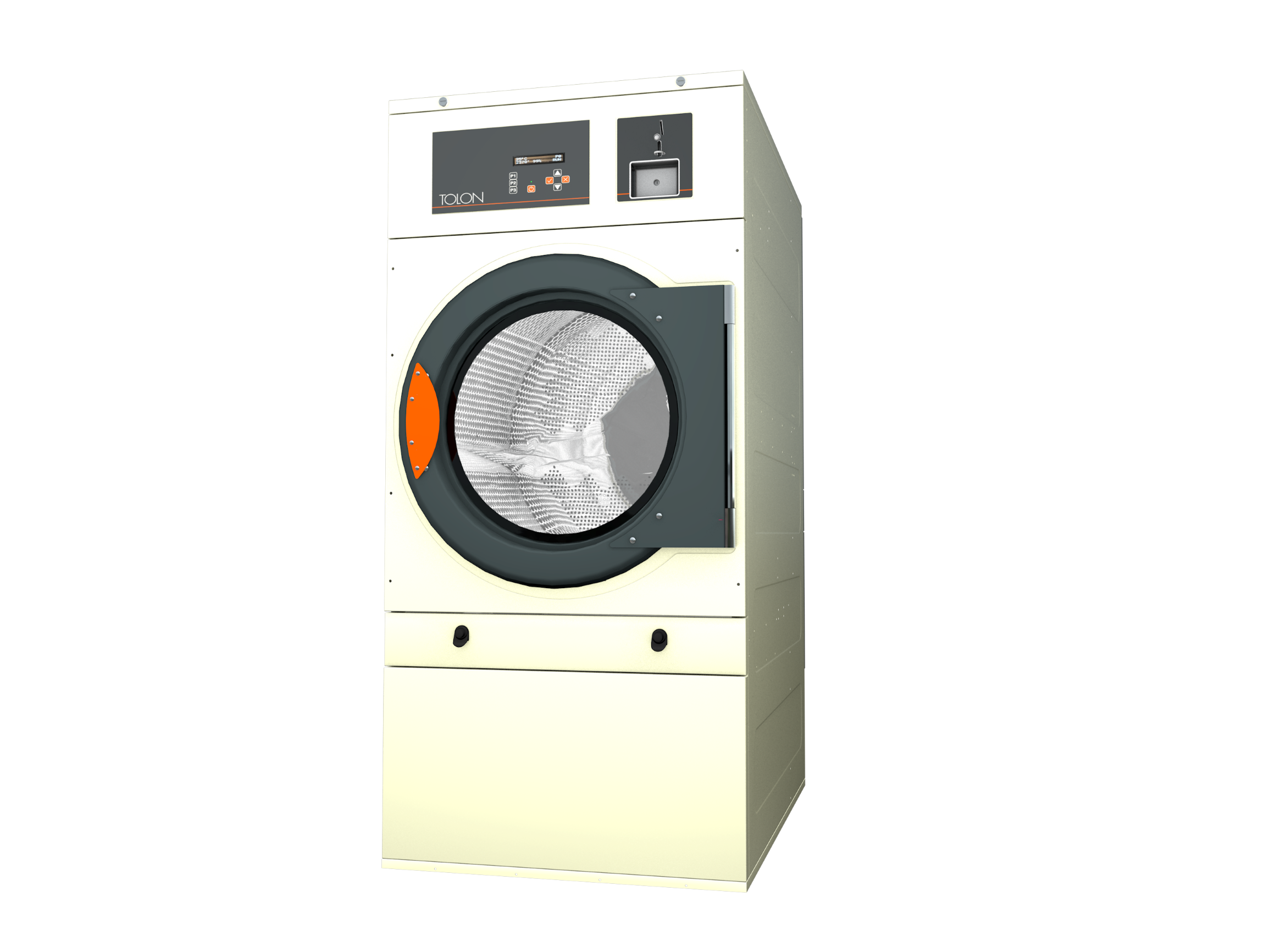

Front view of a commercial laundry washing machine with a round door and digital control panel on top.

TTD20, TTD28, TTD40

Outline of a smartphone with a three-tiered layout, including screens and buttons.

Dryers

ROUND DOOR DRYERS - TRD SERIES

• High-performance industrial Tumble Dryer

• Large economic lint filter at the bottom off the drum

• Ergonomic door with new design and opitonal double

glazing for better insulation

• Door safety stop switch

• Galvanised drum and optional stainless steel drum

• Radial air flow as standard

• Reverse drum rotation

• Available in OPL and COIN

SLIDING DOOR DRYERS - TTD SERIES

• High-performance industrial Tumble Dryers

• Maximum performance, minimum footprint

• Large sliding hatch for easy loading & unloading

• Flexible automatic control

• Easy to service

• Low utility costs

• Exhaust to the top

Industrial oven or furnace with digital control panel, brand name Tolon, and multiple access panels.

TTD60, TTD110

DOWNLOAD OPL SHEET - TTD60, TTD110

STANDARD FEATURES & BENEFITS - ROUND DOOR DRYERS

• Tumble dryer in skin plate, cream color

• Big loading door

• Direct drive through a gearbox, no pulley for TRD 11-16-23 and

TRDS models

• Transmission by pulley and belt for TRD 28-33

• Time and temperature selection

• Reverse drum: all models offer the reverse turning of the drum

• Drum in galvanised steel

• Digital control, electronic control, easy and intuitive to use. The

electronic control offers complete control of the process

• Radial airflow circuit

• New filter drawer with wide surface and improved airflow. Filter

grid is standard 0,3 mm

• Cool down: anti-wrinkle at the end of cycle

• Models available in electric, gas or steam heating

• Self-service:

For TRD models digital range has several payment options for

laundromats; to work with centralized payment systems,with coin/token or

prepay card systems. (Electric and gas heated models)

For TRDS, to connect to a central payment system or with 2 coiners;

• it can be ordered with 2 coin kits + boxes, a token kit can be ordered with

the token box

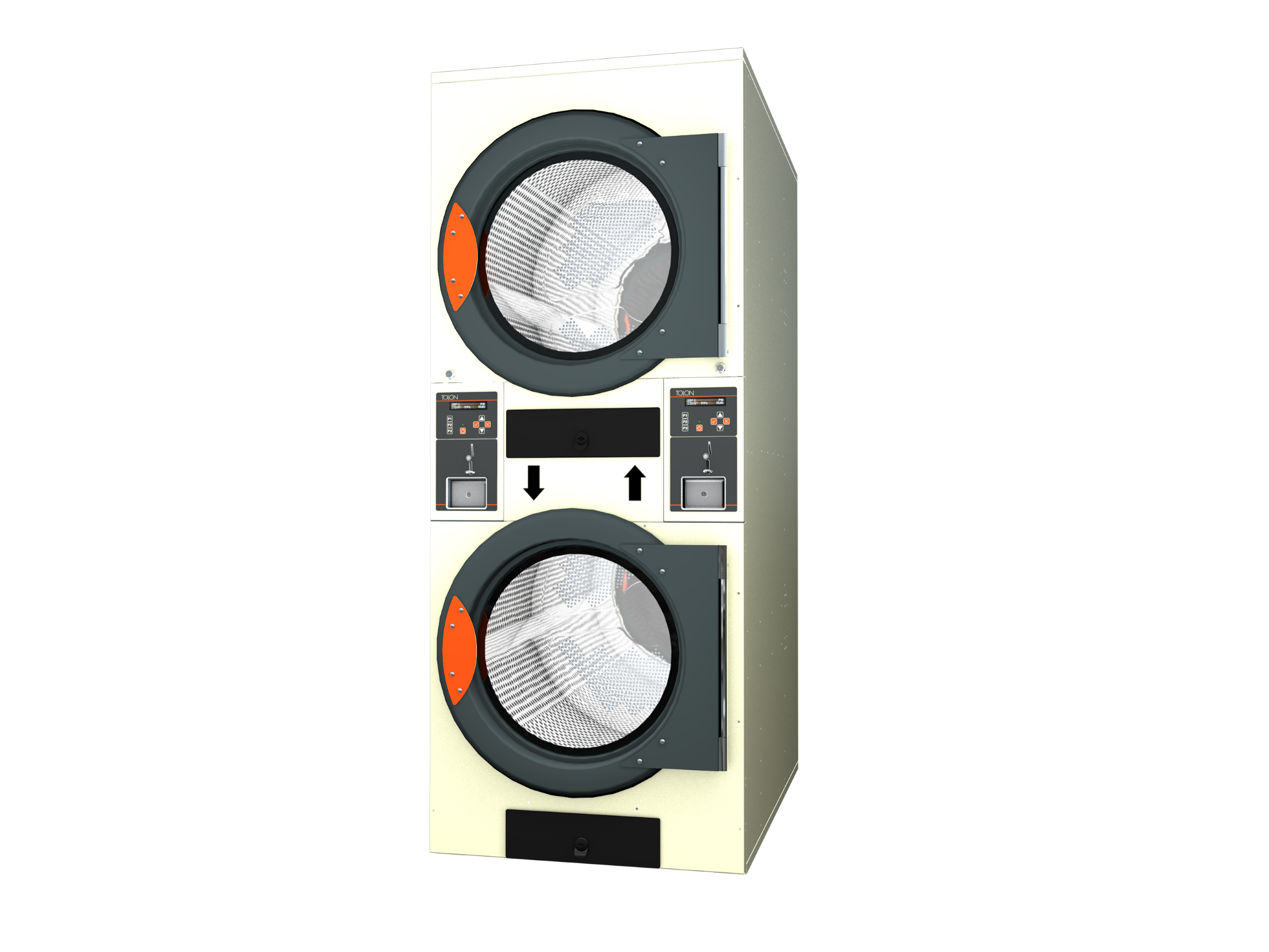

Front view of a coin-operated laundromat washing machine with two circular doors, control panels, and an instruction label with arrows indicating loading and unloading directions.

TRSD11, TRSD16

STANDARD FEATURES & BENEFITS - SLIDING DOOR DRYERS

• Industrial tumble dryer

• Stainless steel drum for long life and to avoid corrosion

• Fully insulated, energy-saving drum

• Reversing drum for efficient drying of large items

• Wide hatch sliding doors for easy loading & unloading with window

• Large and easily accessible and removable stainless steel filter with

window for visual management

• Hinged lint filter door for easy opening & cleaning

• Flexible and freely programmable control with large display for easy

operation and perfect management of your laundry business

• Clear status light indication for easy and quick visual management

• Adjustable feet (fixed on TTD110)

• Forward tilting on TTD110 for easy unloading

• Sprinkler device for fire suppression on all gas tumblers

• Pressure switch on all models for efficient drying

• Electric solenoid valve on TTD 28-40-60

• Pneumatic steam valve on TTD110

• Fresh air intake flap for cool down on TTD110 steam

• Standard Inverter drive
